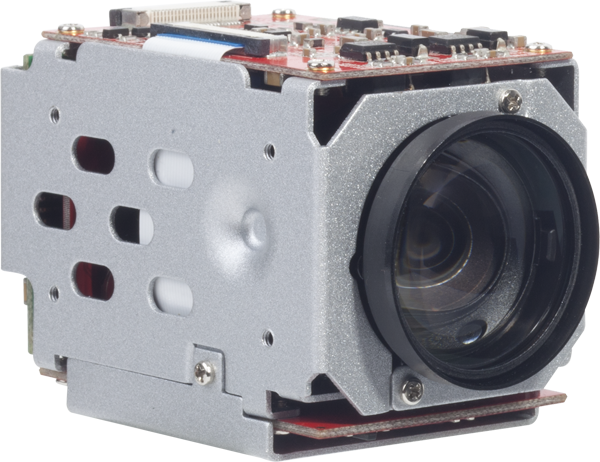

采用1/4英寸超感度高清 CCD芯片和HD7000H高性能DSP，水平分辨率最高可達到彩色600線；內置3.8-38mm非球面鏡頭，具備10倍光學變焦，16倍數字放大；具有日夜彩色黑白自動轉換功能內置機械式IR-Cut裝置，最低照度彩色達到0.5Lux，黑白0.02Lux；卓越的暗區補償、背光補償和可設置的2D、3D數字降噪技術，SENS-UP,XDR等功能，使該一體化攝像機在不同的光照環境下都能提供高清晰、色彩還原逼真的圖像；該系列產品還具有移動偵測、peak 控制、上下左右翻轉，凍結等多種功能；本機體積小巧,性價比高。適用于日夜大范圍監控的環境，如：碼頭、廣場、學校、小區、道路等場所。
|
Item
|
Specification
|
|
Image Sensor:
|
1/4 inch Interline CCD
|
|
Effective Pixel :
|
510(H)*492(V)
|
|
Horizontal resolution:
|
500TVL
|
|
Scanning:
|
2:1 Interlace
|
|
Synchronize:
|
Internal
|
|
Video Output:
|
VBS 1Vp-p 75Ω
|
|
S/N:
|
STD 52dB(Minimum48dB) AGC OFF
|
|
Shutter Speed:
|
PAL:1/50-1/100000sec NTSC:1/60-1/100000sec
|
|
Minimum scene illumination:
|
彩色：0.1 Lux/F1.5 (50 IRE) 黑白：0.01 Lux/F1.5 (50 IRE)
|
|
Lens:
|
10x optical zoom, f=3.8 mm (Wide) to 38 mm (Tele), F1.6 to F3.0
|
|
Digital zoom:
|
16x (160x with optical zoom)
|
|
Minimum working distance:
|
10mm (Wide end) to 1m (Tele end)
|
|
Focusing system:
|
Auto (sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
|
|
IR-CUT Control:
|
Auto/Day/Night/External (External control input voltage 3.3-12V DC)
|
|
Camera control interface:
|
TTL:Level(2400,4800,9600,19200,38400 bps selectable)
|
|
White balance :
|
ATW;AWC(One push)/MANUAL
|
|
Shutter control:
|
ALC(1/60s or Flicker Less(1/100))
|
|
AGC:
|
Auto/Fix(Fix 6dB-36dB) 36dB Max
|
|
Sens-UP:
|
0-128X
|
|
XDR:
|
ON/OFF
|
|
Noise Reduction:
|
2D/3D/2D+3D/OFF
|
|
Mask Zone:
|
4 areas(Each Area Size Can Be Set)
|
|
Motion Detection:
|
48 Areas
|
|
Backlight compensating:
|
48 Areas Compensating Level Can Be Set
|
|
Special Function:
|
Mirror(left to right or up and down); freeze;cross
|
|
OSD:
|
Chinese / English
|
|
Operation temperature :
|
-20℃ ～＋ 70 ℃
|
|
Humidity:
|
80%
|
|
Storage temperature:
|
-30℃～＋80℃
|
|
Power source:
|
DC 12V ±10%
|
|
Consumption current:
|
150mA DC (Maximum 300mA DC)
|
|
Outside dimension:
|
42.5w*35.6h*58.6d
|
